Outdoor or indoor use.
Suitable for the following cable types-
(a)Non-armoured cable;
(b)Marine shipboard cable Type P cable.

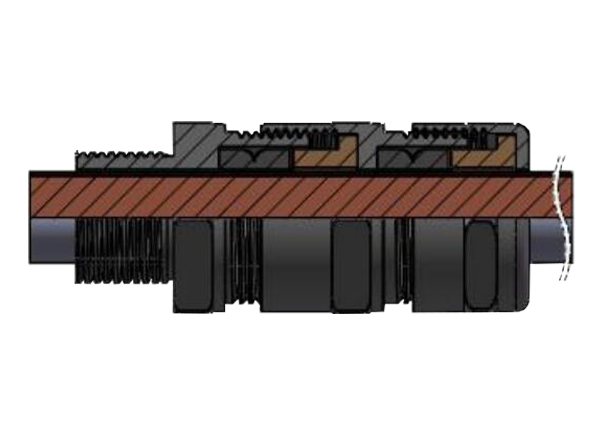

The cable gland provides two independent seals onnon-armoured elastomer and plastic insulated cables. The first is a flameproof seal on the inner or outer cable sheath, with anadditional IP seal on the outer sheath.
Provides superior cable retention to standard unarmoured cableglands, with a seal at two independent points.
When used in Increased Safety applications, this cable gland may be used with braided cable where the braid and the outersheath pass into the enclosure. The braid must then be suitably terminated inside the enclosure.
Service hotline：
0523-88317000 88318288
-
Technical Data
? Suitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups IIA, IIB and IIC.
? Construction and Test Standards: IEC/EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-7 and IEC/EN 60079-31.
? Ingress Protection: IP66, IP67 and IP 68* (30 metres for 7 days) to IEC/EN 60529 and NEMA 4X.
? Operating Temperature Range: -60°C to +140°C.
? Deluge Protection to DTS01.
? Material: brass, nickel plated brass or stainless steel 304、316L
? Ex-marking:
II 2 GD
Ex d IIC Gb Ex e IIC Gb Ex tb IIIC Db IP68 -

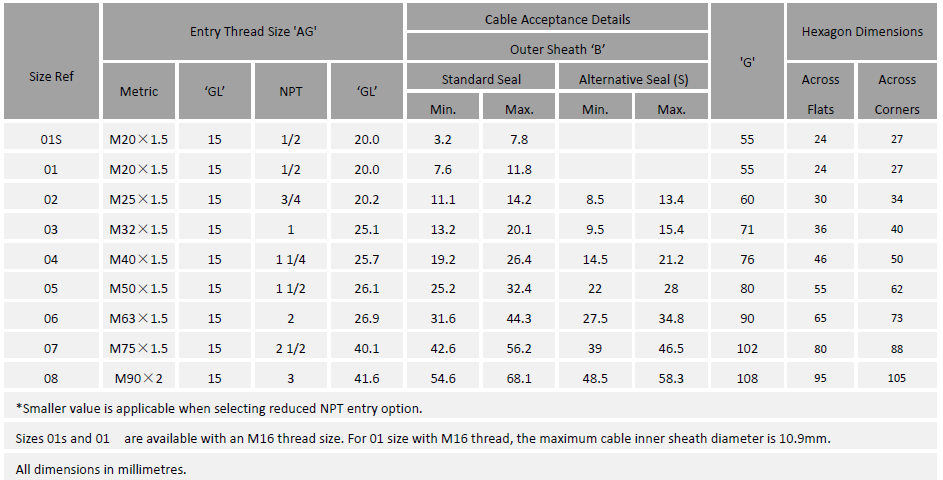

Selection table
-

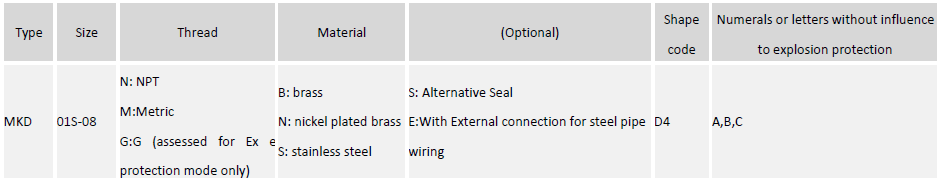

Ordering information
|
