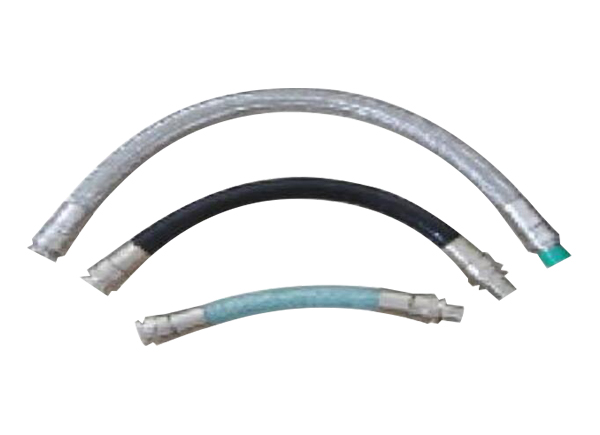

BNG Explosion proof flexible conduit
With oil resistance, acid resistance, corrosion resistance, agingresistance, explosion proof, waterproof, dust proof performance,good flexibility, compact structure, strong connection.
Flexible pipe length can be customized according to customerrequirements.
At each entrance to an enclosure housing an arcing or sparking device whenused in Class I, Division 1 and 2 hazardous locations.To be located as close as practicable and, in no case, more than 18" from suchenclosures.
download
Service hotline：
0523-88317000 88318288
Parameter
-
Technical Parameter
? According to user requirements, the pipe joint thread can beconfigured with ISO, G and NPT thread.
? Material: stainless steel 、rubber 、PVC
? Use temperature range: stainless steel braided net sheath flexible connecting pipe -50? C~+50? C
Rubber sheath flexible connecting pipe -20? C~+60? C
PVC sheath flexible connecting pipe +5? C~+40? C
? Zones :1-2-21-22
? Marking
II 2 GDExdIICGb ExeIICGb ExtbIIICDb IP66 -

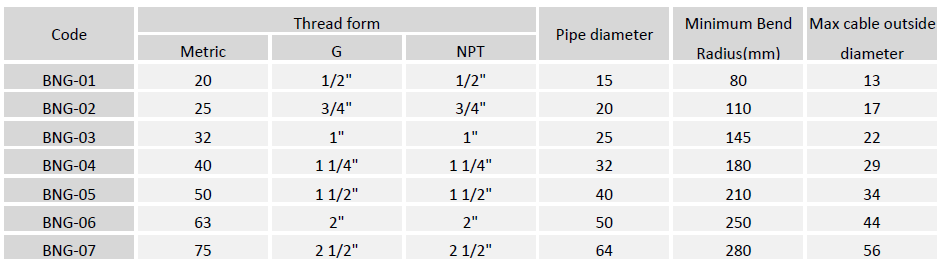

Selection table
-

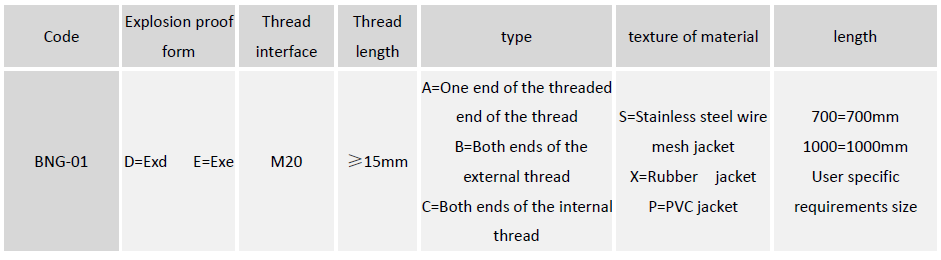

Ordering information
Parts
|
